Bonsoir,

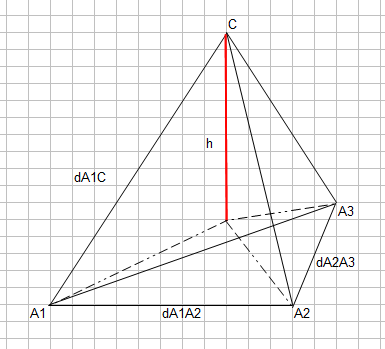

Tu cherches l'intersection de 3 sphères de rayons respectifs dA1C, dA2C, dA3C, et de centres respectifs A1, A2, A3.
Fais une recherche Google sur "intersection de 3 sphères", tu verras que le sujet a déjà été abondamment traité...

Bonsoir,
En effet, ça correspond tout à fait. Merci beaucoup

Alors pour aider les futurs membres, voila le fruit de mes recherches:

Quand on a les angles, c'est la triangulation.
et quand on a les distances, Il s'agit de la trilatération.
C'est très bien expliqué sur wikipedia: http://en.wikipedia.org/wiki/Trilateration

Ensuite, pour ceux qui veulent programmer en C, voici un exemple qui marche très bien.
Par contre, il faut penser à rajouter une 4eme antenne si on ne peut éliminer un point négatif: (Cas des GPS sur la terre)

A+
Carmic

/*
* File: trilateration.c
* AUthor: doug@neverfear.org
*
* Implements an approach to trilateration
*
*/




#include <stdio.h>
#include <string.h>
#include <math.h>

#define PLUS_MINUS '�'
#define PI 3.1415926535897932384626433832795

struct coordinate {
double x;
double y;
double z;
double r;
};

struct transformation {
double x;
double y;
double z;
double alpha;
char zyswapped;
};

#define TRUE  1
#define FALSE 0

#define DEG2RADs(x) ((PI / 180.0) * x)
#define RAD2DEGs(x) ((180.0 / PI) * x)

#define SQR(x) (x * x)

#define PRECISION_F "%.3f"

unsigned int last_random = 1;


/* Generate a random number 0 -> highest */
unsigned int GenerateRandom(unsigned int highest) {
srand(time(NULL) + last_random);
last_random = rand() % highest;
return last_random;
}


/* Generate 3 points in the vector space around target for testing purposes */
void GeneratePoints(struct coordinate target, struct coordinate * terms) {
double alpha;
int i;

for(i = 0; i < 3; i++) {
alpha = DEG2RADs(GenerateRandom(360));

terms[i].x = target.x + (target.r * cos(alpha));
terms[i].y = target.y + (target.r * sin(alpha));
terms[i].z = target.z;
terms[i].r = target.r;

/*
printf("Generated Term %d {\n", i);
printf("  x = " PRECISION_F "\n", terms[i].x);
printf("  y = " PRECISION_F "\n", terms[i].y);
printf("  z = " PRECISION_F "\n", terms[i].z);
printf("}\n");
*/
}

}

/* Perform the trilateration for the given 3 terms */
struct coordinate Trilaterate(struct coordinate * terms) {

struct coordinate result;
double i = terms[2].x - terms[0].x;
double j = terms[2].y - terms[0].y;
double d = terms[1].x;

result.x = (SQR(terms[0].r) - SQR(terms[1].r) + SQR(d)) / (2 * d);

result.y = ( (SQR(terms[0].r) - SQR(terms[2].r) + SQR(i) + SQR(j) ) / (2 * j) ) - ((i / j) * result.x);

result.z = sqrt(abs(SQR(terms[0].r) - SQR(result.x) - SQR(result.y)));

return result;
}


/*
   Modify our coordinate system and apply the new system to the given terms.
   The modifications leave the following state to be true:
   terms[0].x == 0 && terms[0].y == 0 && terms[0].z == 0
   terms[1].y == 0

   Returns information about the alterations used to restore the coordinate system later.
*/
struct transformation CoordinateTransformation(struct coordinate * terms) {
int i;
double temp;
struct transformation map;
map.x = -terms[0].x;
map.y = -terms[0].y;
map.z = -terms[0].z;

// Center coordinate system
for(i = 0; i < 3; i++) {
terms[i].x += map.x;
terms[i].y += map.y;
terms[i].z += map.z;
}

// Rotate coordinate system such that terms[1].y == 0
double a; // width
double b; // height
double c; // hypotenuse

a = (terms[1].x);
b = (terms[1].y);
c = sqrt(SQR(a) + SQR(b));

map.alpha = acos(((SQR(a) + SQR(c)) - SQR(b)) / (2.0 * a * c));

if ((a > 0 && b > 0) || (a < 0 && b > 0)) {
map.alpha *= -1;
}

for(i = 0; i < 3; i++) {
// Rotate x and y
double x, y;
x = terms[i].x * cos(map.alpha) - terms[i].y * sin(map.alpha);
y = terms[i].x * sin(map.alpha) + terms[i].y * cos(map.alpha);
terms[i].x = x;
terms[i].y = y;

/*
printf("Rotated Term %d {\n", i);
printf("  x = " PRECISION_F "\n", terms[i].x);
printf("  y = " PRECISION_F "\n", terms[i].y);
printf("  z = " PRECISION_F "\n", terms[i].z);
printf("}\n");
*/
}


if (terms[2].y - terms[0].y == 0) { // TODO: What is this for? - I forgot! Whoops
// Swap z with y
for(i = 0; i < 3; i++) {
temp = terms[i].y;
terms[i].y = terms[i].z;
terms[i].z = temp;
}
map.zyswapped = TRUE;

} else {
map.zyswapped = FALSE;
}

return map;

}

/* Reverse and restore the coordinate system for the given coordinate */
struct coordinate InverseCoordinateTransformation(struct coordinate coord, struct transformation map) {
double temp;

if (map.zyswapped) { // TODO: What is this for? - I forgot! Whoops
temp = coord.y;
coord.y = coord.z;
coord.z = temp;
}

double x = coord.x * cos(-map.alpha) - coord.y * sin(-map.alpha);
double y = coord.x * sin(-map.alpha) + coord.y * cos(-map.alpha);

coord.x = x;
coord.y = y;

coord.x -= map.x;
coord.y -= map.y;
coord.z -= map.z;


return coord;
}


/* Executable entry label */
int main(int argc, char ** argv) {

unsigned long distance;
struct coordinate terms[3];
struct coordinate result;
struct coordinate target;
struct transformation restore;
int i;

// Here you specify the distance the target is from all points
distance = 50;

// Here you specify the target
target.x = 123.0;
target.y = 567.0;
target.z = -10.0;
target.r = distance;

for(i = 1; i <= 20; i++) {
printf("\n** TEST %d ** \n", i);

// Generate a triplet of test points
GeneratePoints(target, terms);

// Alter the coordinate system to center terms[0] and rotate the plane to ensure terms[1].y == 0
restore = CoordinateTransformation(terms);

// Trilaterate the 3 points and get the intersection
result = Trilaterate(terms);

// Restore the previous coordinate system
result = InverseCoordinateTransformation(result, restore);

// Dance or something
printf("Result = (" PRECISION_F ", " PRECISION_F ", %c " PRECISION_F ")\n", result.x, result.y, PLUS_MINUS, result.z);

}
}

En effet, le code n'est pas du tout robuste.
C'est juste pour montrer comment coder le calcul matricielle, c'est ce qui m'avait un peu bloqué
